Complete Engine Fastener Bundle - Head Studs, Main Studs, Rod Bolts & Balancer Bolt | 2003-2007 6.0L Ford Power Stroke XPB874

Head, Main, Rod & Balancer Fastener Bundle

Ford Power Stroke · 6.0L

2003–2007

PART # XPB874

Save 5% Save %
$886.63
$886.63 - $886.63
$886.63
$842.30
$842.30 - $842.30
$842.30
Availability:
in stock, ready to be shipped
Limited Lifetime Warranty
Free shipping is available on orders over $100 shipping to the USA or Canada.

Build the whole engine, not half of it. This bundle pairs every critical fastener upgrade for the 6.0L Power Stroke into one kit — top end, bottom end, and rotating assembly — and saves you 5% versus buying each piece on its own.

What's Included

  • CP874 — Head Stud Kit, 2003-2007 6.0L Power Stroke
  • MP874 — Main Stud Kit, 2003-2007 6.0L Power Stroke
  • CP115 — Connecting Rod Bolt Kit, 2003-2010 6.0L/6.4L Power Stroke
  • CP239 — Harmonic Balancer Bolt, 2003-2010 6.0L/6.4L Power Stroke

Why Bundle It

The 6.0L lifts heads long before anything else lets go, but a head stud upgrade alone leaves the bottom end on factory clamping force. If you already have the engine apart for head studs, the mains, rods, and balancer bolt are labour you are effectively getting for free. Doing it in one pass means one teardown, one gasket set, one alignment of everything to spec.

XOTIC 7200 Alloy

Our fasteners are manufactured from XOTIC 7200 alloy rated to 230,000 psi tensile strength, heat-treated and thread-rolled after heat treatment for maximum fatigue life under boost, high cylinder pressure, and repeated heat cycling.

Your application

The right fit comes first.

Browse the compatible applications below, or check your exact vehicle before adding this product to your cart.

Check my vehicle

For 2003–2007 6.0L Ford Power Stroke engines. CP115 and CP239 also have individual 6.4L listings; that does not extend this bundle’s fitment to 6.4L engines. Confirm the engine and fastener configuration before assembly.

Head, Main, Rod & Balancer Fastener Bundle — Ford Power Stroke · 6.0L

Inside the box

Know exactly what arrives.

Included components for this product.

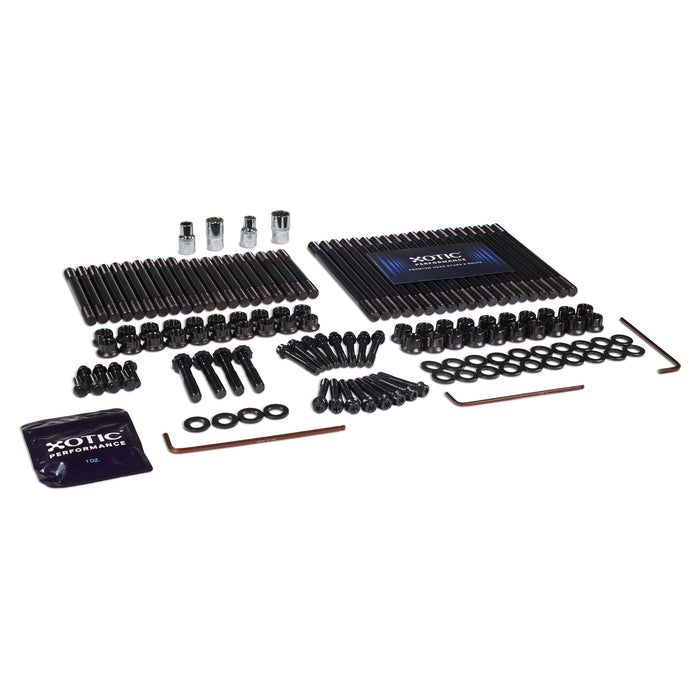

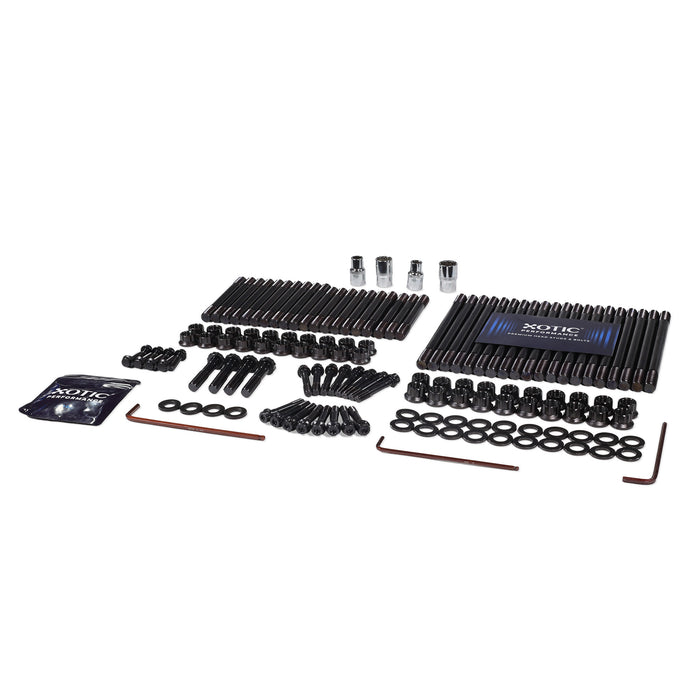

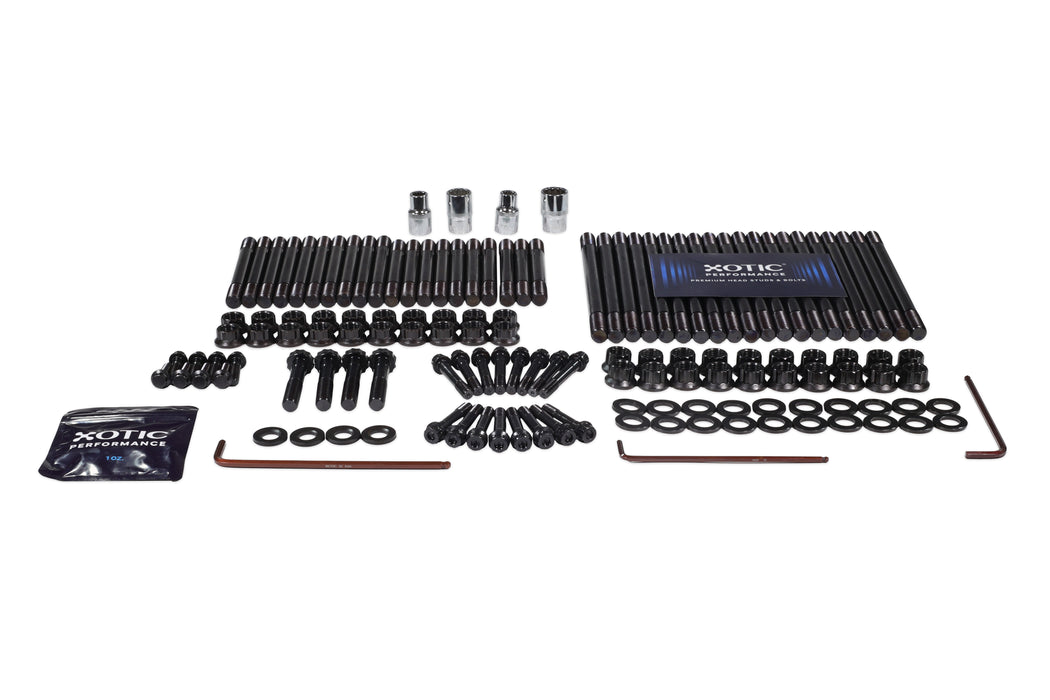

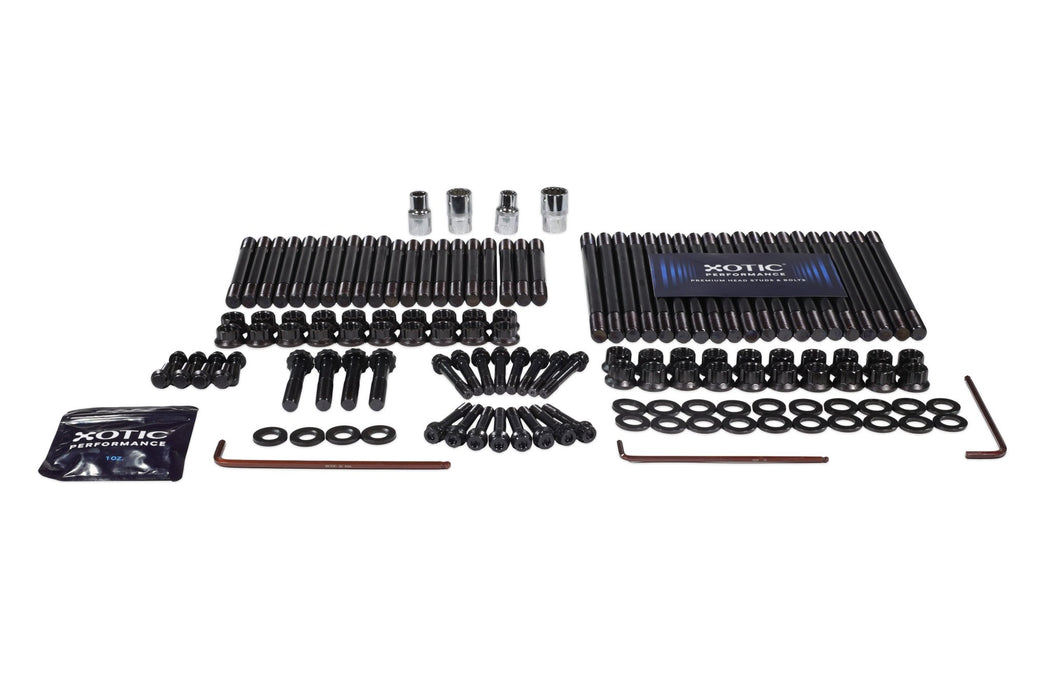

QtyComponent
1 CP874 head-stud kit
20 M14 × 223 mm head studs, 20 nuts, 20 hardened parallel washers, one 11/16-inch socket, one 4.7 mm Allen wrench and assembly lubricant.
1 MP874 main-stud kit
20 M14 main studs (143 mm inner / 131 mm outer), 20 nuts, eight M8 bolts, one Allen wrench, two sockets and assembly lubricant.
1 CP115 rod-bolt kit
16 M9 × 49.5 mm connecting-rod bolts, one socket, assembly lubricant and installation manual.
1 CP239 harmonic-balancer bolt kit
Four harmonic-balancer bolts, four hardened parallel washers, one socket and assembly lubricant.

Engineering details

Every part has its own role.

Use each included component at its intended joint, with the matching hardware and component-specific assembly procedure.

Engine fastener component groups Representative head stud, main stud and additional bolt. Exact bolt types, quantities and other included components vary by bundle. Head studsMain studsAdditional bolts
Representative component groups. See the contents for exact parts and quantities.

Match each component.

Head, main and accessory fasteners serve different mounting interfaces. Match every kit to the engine and joint it is intended to secure.

Keep component specifications separate.

Use the requirements for each included kit. A shared bundle does not make every bolt or stud the same size, material or tightening specification.

Follow the component procedure.

Prepare the mating surfaces and threads, and follow the instructions for each component. Do not apply one torque value or sequence to the entire bundle.

Before you begin

A good install starts here.

Review the instructions and any application-specific requirements before you begin.

CP874 installation manual MP874 installation manual CP115 installation manual CP239 installation manual

Open the instructions for the component you are installing. Each linked document covers the named kit; its procedure and torque values apply to that component.

Before you order

Which applications does the bundle cover?

For 2003–2007 6.0L Ford Power Stroke engines. CP115 and CP239 also have individual 6.4L listings; that does not extend this bundle’s fitment to 6.4L engines. Confirm the engine and fastener configuration before assembly.

How many balancer bolts are included?

The included CP239 kit supplies four balancer bolts and four hardened parallel washers.

Are all included fasteners the same material?

No blanket material specification applies to the complete bundle. Use the specifications of the individual component kits.

What warranty applies?

The included fastener kits carry Limited Lifetime Warranty coverage. See the policy for terms.
