Non-VVT LS Camshaft Retainer Plate Kit Chevrolet LS Gen III 4.8L-6.0L | Replaces GM 12589016; Bonded Seal and 4 Mounting Bolts Included CB100

Camshaft Retainer Plate Kit

Non-VVT Chevrolet LS Gen III 4.8L–6.0L

PART # CB100

$32.98 - $32.98
$32.98
$32.98 - $32.98
$32.98
Availability:
in stock, ready to be shipped
Limited Lifetime Warranty
Free shipping is available on orders over $100 shipping to the USA or Canada.

Reused cam bolts stretch, back out, and take your timing — and your engine — with them. This high-strength cam retainer bolt kit delivers the clamping force to keep your timing gear registered and torqued through valvetrain harmonics that fatigue factory hardware.

  • High-strength alloy steel resists stretching and vibration loosening
  • Increased pre-load clamping force for positive timing gear register
  • Fits Chevrolet Gen III LS small block (4.8L, 5.3L, 5.7L, 6.0L)

Doing a full refresh? Check out our LS Gen III head bolt kit (Part# XP988).

Your application

The right fit comes first.

Browse the compatible applications below, or check your exact vehicle before adding this product to your cart.

Check my vehicle

For the listed non-VVT Chevrolet LS Gen III 4.8L, 5.3L, 5.7L and 6.0L applications. Replaces GM12589016. Confirm the original retainer-plate design and OE reference before ordering.

Non-VVT LS Camshaft Retainer Plate Kit Chevrolet LS Gen III 4.8L-6.0L | Replaces GM 12589016; Bonded Seal and 4 Mounting Bolts Included

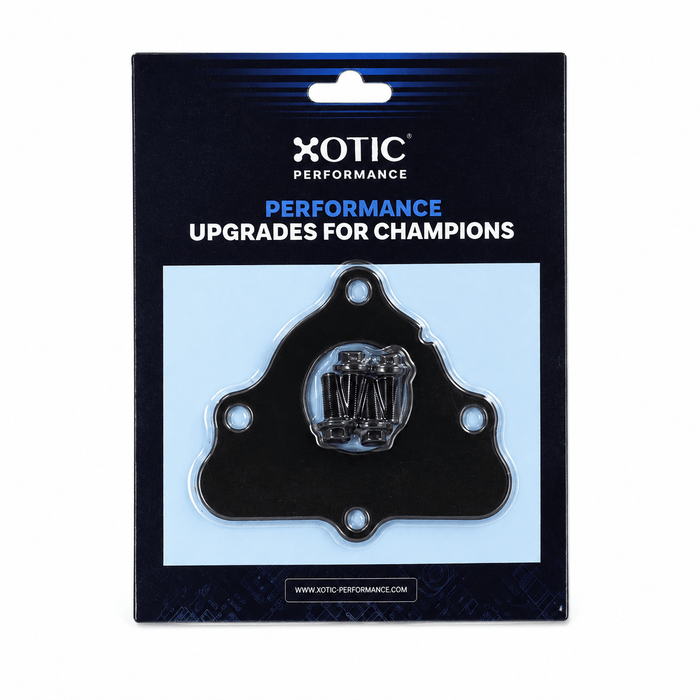

Inside the box

Know exactly what arrives.

Included components for this product.

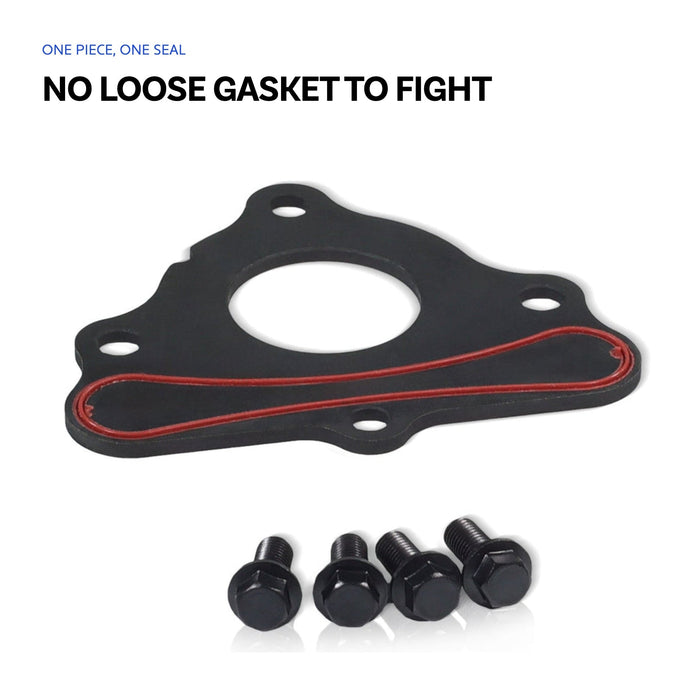

QtyComponent
1 Camshaft retainer plate with bonded seal
The bonded seal is fitted to the plate; it is not a separate loose gasket.

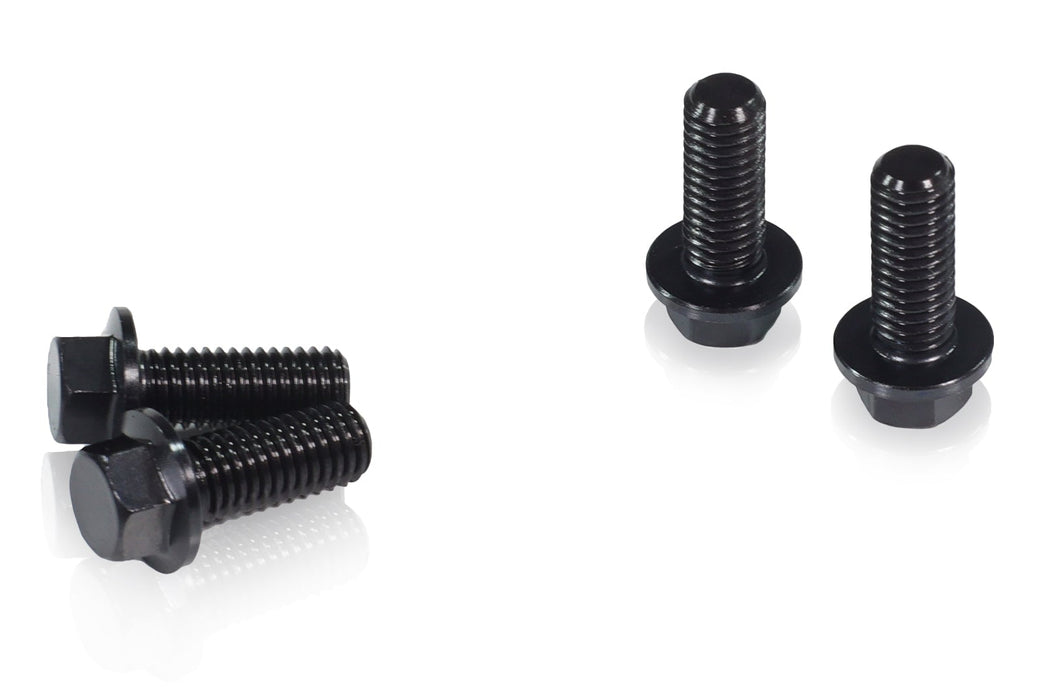

4 Retainer-plate mounting bolts
Hex-head bolts with integral flanges.

Engineering details

A plate at the front of the camshaft.

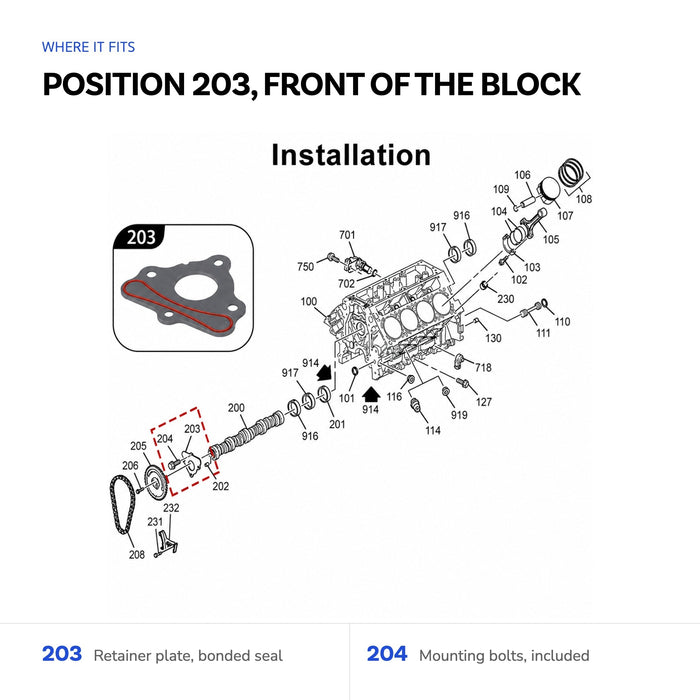

The retainer plate mounts at the front of the engine block to locate the camshaft axially. Its bonded seal and mounting surfaces form part of the matching engine assembly.

The camshaft retainer plate and bonded seal The camshaft retainer plate and bonded seal. Retainer plate, Camshaft opening, Bonded seal, Mounting holes. Representative geometry, not a fitment or bolt-pattern drawing. Retainer plateCamshaft openingBonded sealMounting holes
Simplified view of the block-facing side. The bonded seal follows the lower edge of the plate.

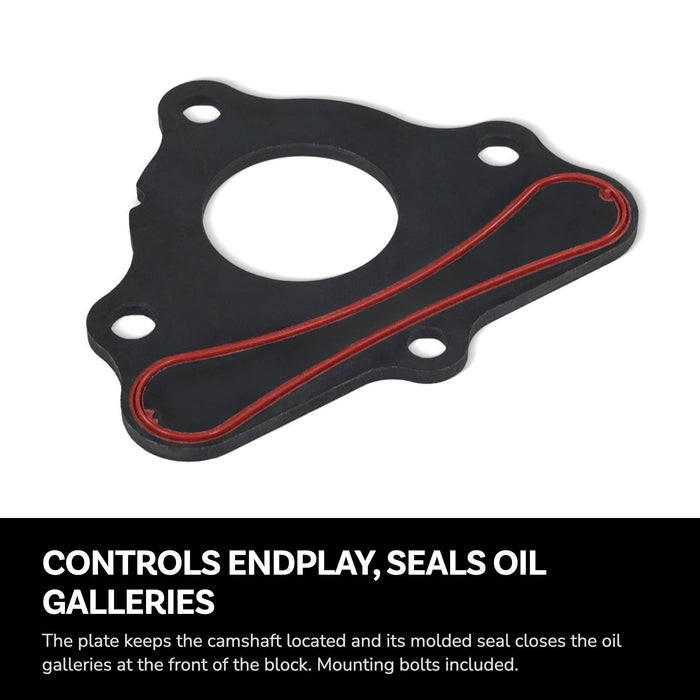

Camshaft retention.

The plate helps control axial movement of the camshaft in the matching block.

Bonded seal.

The seal is part of the supplied plate assembly, not a separate loose gasket.

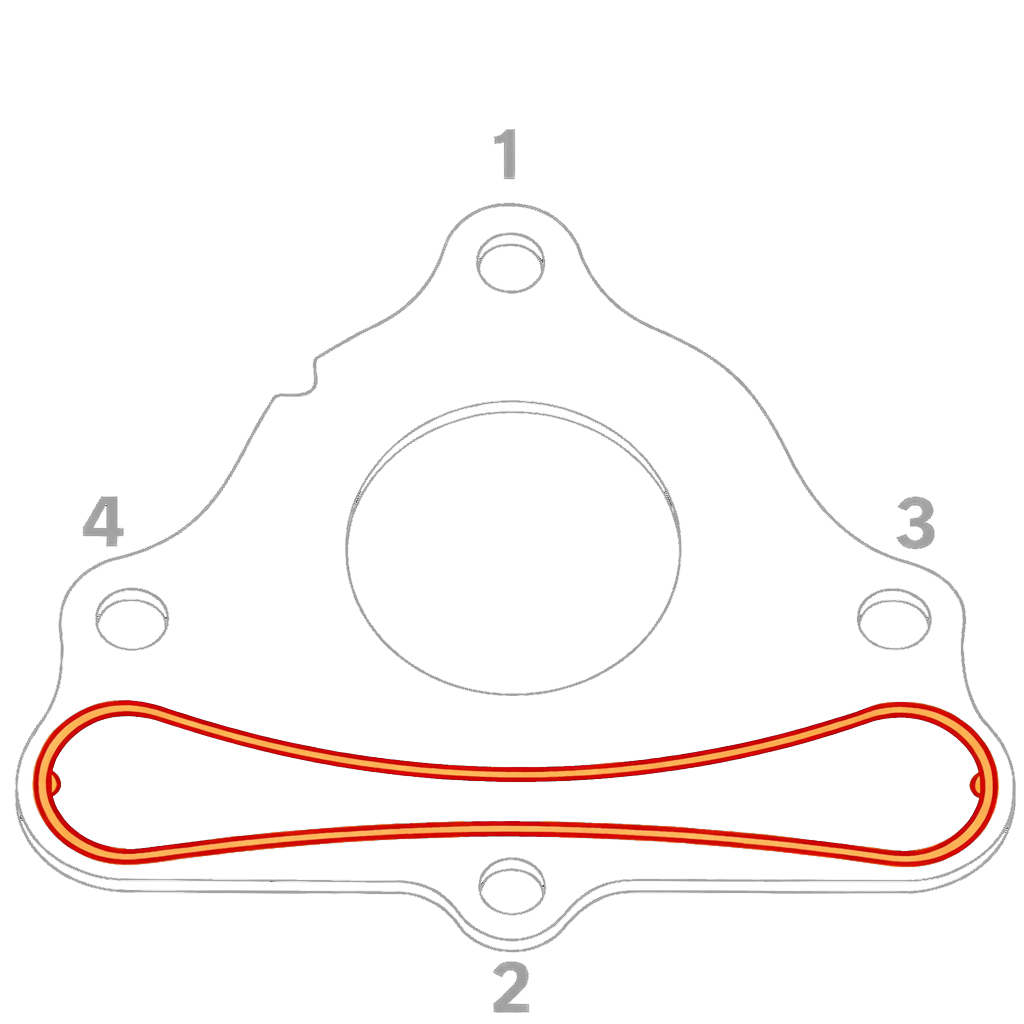

Four mounting points.

Four supplied bolts secure the retainer plate. These are not camshaft sprocket bolts.

Before you begin

A good install starts here.

Review the instructions and any application-specific requirements before you begin.

Read installation guide Download installation manual

Before you order

Is this a camshaft sprocket bolt kit?

No. This is a camshaft retainer plate kit with a bonded seal and four mounting bolts.

Does this fit VVT engines?

This page is for the listed non-VVT Gen III LS application. Verify the engine configuration and GM reference before ordering.

Is the seal supplied separately?

The seal is bonded to the plate. No separate loose gasket is listed.

Where can I find the installation procedure?

Use the linked installation manual for this product and the procedure for your engine.

What warranty is included?

This product carries XOTIC PERFORMANCE’s limited lifetime warranty, subject to the warranty policy.
