Head & Main Stud Combo Kit - 2020-2026 7.3L Ford Godzilla CP893-MP890

Head & Main Stud Combo Kit

7.3L Ford Godzilla V8

2020–2026

PART # CP893-MP890

$813.94 - $813.94
$813.94
$813.94 - $813.94
$813.94
Availability:
Low stock
Limited Lifetime Warranty
Free shipping is available on orders over $100 shipping to the USA or Canada.
Lock Down Both Ends. Build With Total Confidence.

Why upgrade one end of your engine when you can fortify the whole foundation? This combo pairs our Godzilla head stud kit with our main stud kit, giving you superior clamping force where it matters most — sealing the cylinder heads up top and securing the crankshaft main caps down below. It's the complete fastener upgrade for street-driven, towing, and moderately modified 7.3L builds.

Why Drivers Choose XOTIC PERFORMANCE™
  • Top-to-Bottom Strength – Head studs keep your head gasket sealed under boost, heat, and load, while main studs stabilize the bottom end and help prevent main cap walk under high stress.
  • Superior Clamping Force – Unlike bolts that twist as they tighten, studs stay stationary and torque cleanly, delivering more consistent clamp load and reducing wear on your block and head threads.
  • Built for the Long Haul – Whether you're daily driving, towing heavy, or adding performance mods, this combo gives you the stability and durability a stock fastener simply can't.

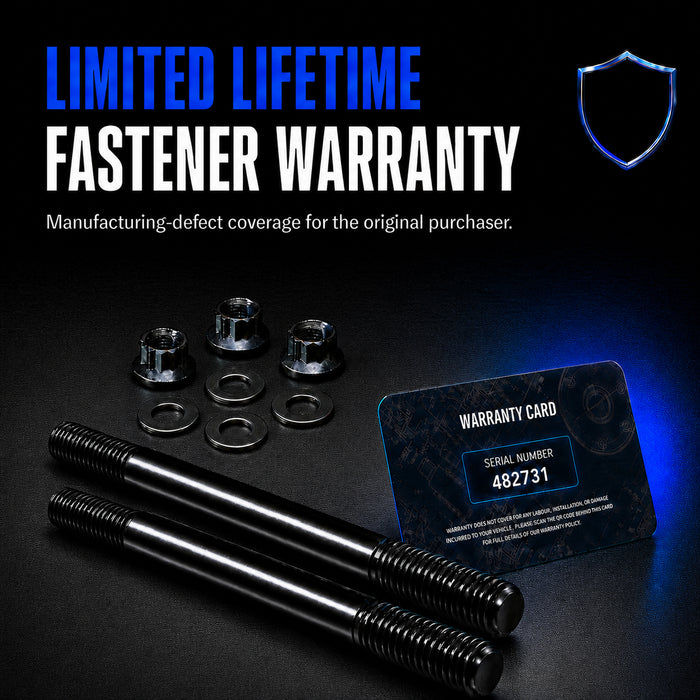

  • Everything You Need – Complete head stud and main stud hardware in one kit — studs, nuts, hardened washers, assembly lubricant, and install tools. No sourcing, no guesswork.
  • Limited Lifetime Warranty – Every fastener is backed by XOTIC PERFORMANCE™ for total peace of mind.

The smart choice for builders who want to do it once and do it right — secure the heads and the bottom end in a single upgrade.

Your application

The right fit comes first.

Browse the compatible applications below, or check your exact vehicle before adding this product to your cart.

Check my vehicle

For the listed 7.3L Ford Godzilla V8 applications. The main kit combines M12 and M10 studs with M10 side bolts.

Head & Main Stud Combo Kit — 7.3L Ford Godzilla V8

Inside the box

Know exactly what arrives.

Included components for this product.

QtyComponent
1 CP893 head-stud kit
20 head studs, 20 nuts and 20 hardened parallel washers.
1 MP890 main-stud kit
10 M12 and 10 M10 main studs, 20 nuts, 30 hardened parallel washers and 10 M10 side bolts. The bundle includes four sockets, an Allen wrench and assembly lubricant.

Engineering details

Two joints. Defined roles.

Head studs secure the cylinder head to the block. Main studs secure the crankshaft main-bearing caps. Use the hardware and procedure specified for each assembly.

Head and main stud groups Representative head stud and main stud with flanged nuts and washers. Stud lengths, quantities and supplementary hardware vary by kit. This is not an engine installation layout. Head studsMain studsNuts + washers
Representative component groups. See the contents for exact parts and quantities.

Head hardware

The CP893 kit supplies the head studs and accompanying hardware used to secure the cylinder-head assembly.

Main hardware

The MP890 kit supplies the main studs and accompanying hardware used at the crankshaft main-bearing caps.

Keep each procedure with its kit

Stud positions, lubricant requirements and tightening procedures are component-specific. Use the separately labeled installation documents for each included kit.

XOTIC 7200 / Material comparison

Tensile & yield strength.

Two measures of strength. Explore the comparison for XOTIC 7200 alloy and 8740 chromoly steel.

Tensile strength

The maximum tensile stress a material withstands before failure.

Original tensile comparison diagram: XOTIC 7200, 232K PSI, in solid blue; 8740 chromoly steel, 222K PSI, in dashed graphite.
Existing material comparison illustration. Not a product-specific kit test.
XOTIC 7200 series

232K PSI

8740 chromoly steel

222K PSI

Yield strength

The stress at which a material begins to deform permanently.

Original yield comparison diagram: XOTIC 7200, 212K PSI, in solid blue; 8740 chromoly steel, 201K PSI, in dashed graphite.
Existing material comparison illustration. Not a product-specific kit test.
XOTIC 7200 series

212K PSI

8740 chromoly steel

201K PSI

The original comparison identifies an M14 × 237 specimen. This material comparison relates to the alloy used in the included head and main studs.

Original method note: ISO 6892-1:2016 or ASTM A370 / ASTM E8/E8M in the US.

Material specification

220–240K PSI

Strength specification

The XOTIC 7200 head and main studs in this bundle have a published tensile-strength range of 220,000–240,000 psi. Tensile strength describes the material under tension; it is not an installed clamping-force or horsepower rating.

View the test documentation

The linked ATRONA report records a 240,000 psi tensile result for a submitted stud tested in May 2020. This result applies to the submitted sample.

View source report

See the details

Behind the product.

Watch the video selected for this product.

XOTIC videoWatch on YouTube

Before you begin

A good install starts here.

Review the instructions and any application-specific requirements before you begin.

Read installation guide CP893 head-stud installation manual MP890 main-stud installation manual

Open the instructions for the component you are installing. Each linked document covers the named kit; its procedure and torque values apply to that component.

Before you order

Which kits are included?

This bundle contains one CP893 head-stud kit and one MP890 main-stud kit. The included-kit list identifies their hardware and links to each component.

Does it fit my engine?

For the listed 7.3L Ford Godzilla V8 applications. The main kit combines M12 and M10 studs with M10 side bolts.

Do both kits use the same installation procedure?

No. The head and main assemblies have separate hardware arrangements and tightening procedures. Use each kit’s labeled manual; do not transfer torque values between them.

What warranty applies?

The included fastener kits carry Limited Lifetime Warranty coverage. See the policy for terms.
